Katariya Steel is a pioneering manufacturer of Titanium sheets, plates, and Coil, which come In specific aspects, styles, dimensions, sizes, and shapes, and good surface finishes are available from us. This skill has assisted us in raising the bar for our products in both domestic as well as international sectors. We are always striving to strengthen the quality of our products and services. We create solutions with the highest quality of materials.

Titanium Sheets have a high strength-to-weight ratio and are neutral to saltwater and chlorine-containing chemicals. These Plates, like certain types of stainless steel, have a passivized oxide coating on the exterior that aids in oxidizing environmental regulation. These Ti Sheets are often utilized in situations where the temperature is not a factor. These Coil have a lower density than stainless-steel Coil. These products have an high demand for a minimal amount of service.

Titanium Plate, Titanium Sheet, Titanium Coils, ASTM B265 Titanium Alloy Plate, Titanium Sheets Price, Titanium CR Plates, Titanium Sheets Supplier in Mumbai, India.

Properties of Titanium Sheet, Plate, Coils.
• Titanium Sheets, plates, and Coils are lightweight, high-strength-type products, they have strong corrosive resilience, making them an ideal and perfect product.
• These Sheets and plates Coil are non-toxic and biocompatible, and they normally do not require servicing since the titanium oxide coating protects them from additional corrosion.
• All of those are extremely long-lasting, solid, and tough and are employed in a few industrial uses where stress corrosive crack resistance max tensile ratios, and superior abrasive wear are required. Furthermore, it can withstand enormous weights and is assured not to be harmed by seawater.

As they have exceptional properties and advantages, these products are utilized in a wide range of industrial sectors. Titanium Sheets, Plates, and Coils are manufactured all around the world for the purpose of aerospace industrial requirements. Titanium products are well-known as the ubiquitous superlight metal and are used in the bicycle and medical purposes, as well as in petrochemical industries, maritime industrial projects, and jet engines.

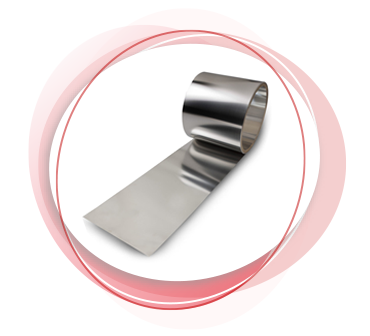

Titanium Alloy Cold Rolled Sheets, Titanium Shim Sheets, Ti Alloy Strips, Titanium Foils, Titanium HR Plate, Titanium Alloy Hot Rolled Plates Stockist in India.

Specification For Titanium Sheets / Plates / Coils

Specification	ASTM B265 / ASME SB 265
Thickness	Plate 0125″ to 5.00″ / Sheets 008″ to .0125″
Sheet / Plates Width	1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Sheet / Plates Length	2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Sheets Hardness	Half Hard, Quarter Hard, Soft, Hard, Spring Hard
Plate / Sheets Size	15NB to 150NB In
Tempers	Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard
Coils Thickness	0.3 mm to 120 mm
Coils Length	AS PER CUSTOMER’S REQUIREMENT
Form	Sheets, Plates, Coils, Strips, Circle, Ring, Disc, Foils
Value Added Service	Cladding, Heat Treatment, Annealed, Pickling, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.

Ready Stock Of Titanium Sheets / Plates / Coils Supplier

Titanium Alloy Plate Thickness Tolerance Chart
Titanium Plasma Cutting Plate
Titanium Sheet Thickness Tolerance
Titanium Plates Sheets
Titanium Slitting Coils
Ti Alloy Sheet and ASTM B265 Plate/ Coils
Titanium Embossed Sheet
Titanium Custom Plates

Titanium Alloy Plates
Ti Alloy Plates Standard
Type of Titanium Sheets
Check Titanium Plates Sizes
Check Titanium Sheets / Plates Sizes
Titanium Plate in Chennai
Titanium Alloy Industrial Sheets
Grades Titanium Sheets
Wide Range of Titanium Gr.Coils

Titanium Sheets / Plates Thickness Chart

Titanium Gauge Chart*
Gauge Number	Inches	MM
8	.17187	4.365
9	.15625	3.968
10	.14062	3.571
11	.125	3.175
12	.10937	2.778
14	.07812	1.984
16	.0625	1.587
18	.050	1.270
20	.0375	.9525
22	.03125	.7937
24	.025	.635
26	.01875	.476
28	.01562	.396
30	.0125	.3175

Titanium Sheets / Plates Weight / Size

WEIGHT PER TITANIUM SHEET :
THICKNESS IN MM	SIZE IN MM			WEIGHT KG/M2
THICKNESS IN MM	2000 X 1000	2500 X 1250	3000 X 1500	WEIGHT KG/M2
0.18	2.88	–	–	1.44
0.20	3.20	–	–	1.60
0.22	3.52	–	–	1.76
0.24	3.84	–	–	1.92
0.27	4.32	–	–	2.16
0.28	4.48	–	–	2.24
0.32	5.12	–	–	2.56
0.38	6.08	–	–	3.04
0.44	7.04	11.00	–	3.52
0.50	8.00	12.50	–	4.00
0.56	8.96	14.00	–	4.48
0.63	10.08	15.75	–	5.04
0.75	12.00	18.75	–	6.00
0.88	14.08	22.00	–	7.04
1.00	16.00	25.00	36.00	8.00
.1.13	18.08	28.25	40.00	9.04
1.25	20.00	31.25	45.00	10.00
1.38	22.03	34.50	50.00	72.00
1.50	24.00	37.50	54.00	12.00
1.75	28.00	43.75	63.00	14.00
2.00	32.00	50.00	72.00	16.00
2.25	36.00	56.25	81.00	18.00
2.50	40.00	62.50	90.00	20.00
2.75	44.00	68.75	99.00	22.00
3.00	48.00	75.00	108.00	24.00
3.25	52.00	81.25	117.00	26.00
3.50	56.00	87.50	126.00	28.00
3.75	60.00	93.75	135.00	30.00
4.00	64.00	100.00	144.00	32.00
4.25	68.00	106.25	153.00	34.00
4.50	72.00	112.50	162.00	36.00
5.00	80.00	125.00	180.00	40.00
5.50	88.00	137.50	198.00	44.00
6.00	96.00	150.00	216.00	48.00
6.50	104.00	162.50	234.00	52.00
7.00	112.00	175.00	252.00	56.00
7.50	120.00	187.50	270.00	60.00
8.00	128.00	200.00	288.00	64.00

Titanium Sheets / Plates Thickness Tolerance

Thickness in. (mm)	Sheet / Plates Width
Thickness in. (mm)	36 (914.4) in. (mm	48 (1,219) in. (mm)
0.017–0.030 (0.43–0.76)	0.0015 (0.038)	0.002 (0.051)
0.031–0.041 (0.79–1.04)	0.002 (0.051)	0.003 (0.076)
0.042–0.059 (1.1–1.5)	0.003 (0.076)	0.004 (0.10)
0.060–0.073 (1.5–1.9)	0.003 (0.076)	0.0045 (0.11)
0.074–0.084 (1.9–2.1)	0.004 (0.10)	0.0055 (0.14)
0.085–0.099 (2.2–2.5)	0.004 (0.10)	0.006 (0.15)
0.100–0.115 (2.5–2.9)	0.005 (0.13)	0.007 (0.18)
0.116–0.131 (2.9–3.3)	0.005 (0.13)	0.0075 (0.19)
0.132–0.146 (3.4–3.7)	0.006 (0.15)	0.009 (0.23)
0.147–0.187 (3.7–4.7)	0.007 (0.18)	0.0105 (0.2
