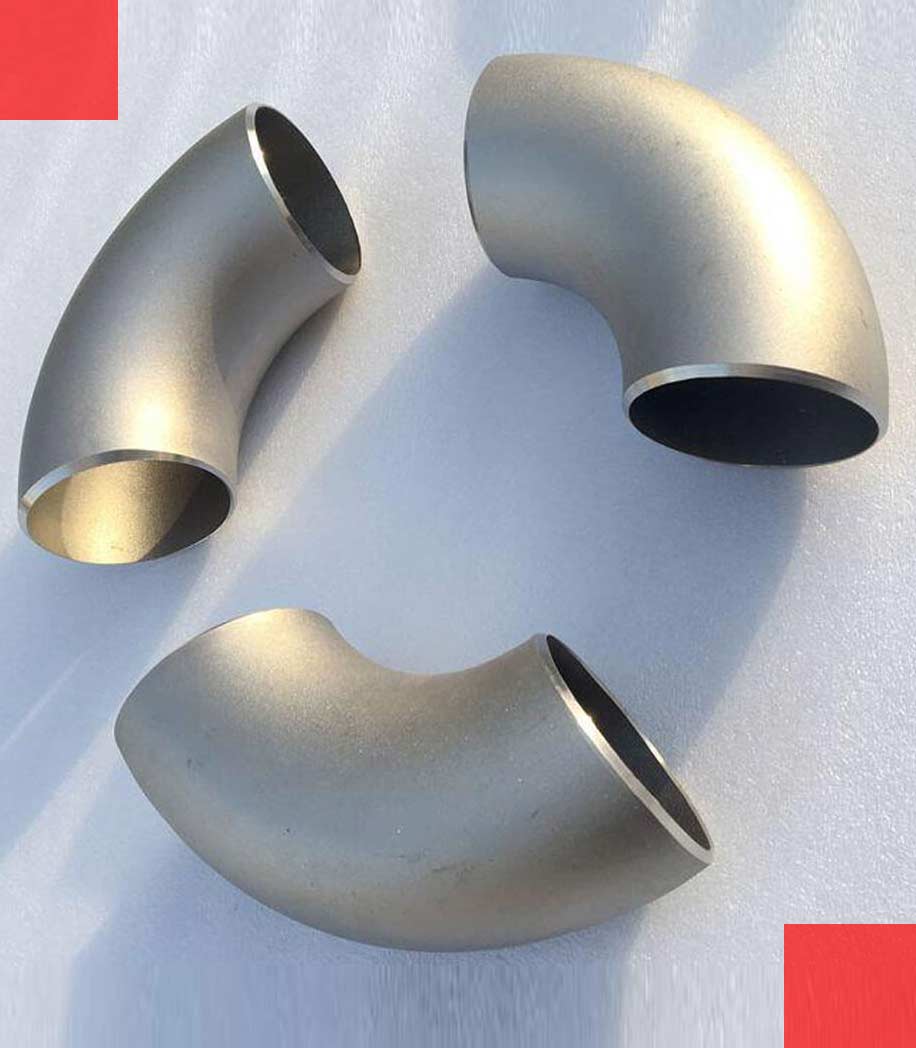

SMO 254 Pipe Fittings Manufacturer

Katariya Steel Distributors is a well-known company that manufactures, supplies, and exports SMO 254 Pipe Fittings to our patrons globally. We take into consideration all, national and international quality standards.

The austenitic stainless steel SMO 254 Butt Weld Fittings is chosen for their resistance to crevice corrosion and pitting. Because of its high work toughening rate and absence of sulphur content, 254 SMO Pipe Fittings are exceedingly difficult to process. 254 SMO Pipe Fittings are often used in the Chemical Process Industry for Fatty and Organic Acids, Urea Production, High Halide Applications, and so on. SMO 254 Butt Weld Fittings have been reported to be an inexpensive standby for high titanium and nickel alloys in a variety of applications.

Nickel is incorporated at a high concentration, along with copper and nitrogen additives; the steel, along with a number of others, is designed to withstand stress corrosion cracking in boiling chloride solutions; the steel is quite simple to manufacture and weld; because a solution anneals must be completed at a temperature of 2100 degrees Fahrenheit, this alloy is recommended for forging temperatures between 2370 and 1920 degrees Fahrenheit.

SMO 254 Pipe Fittings, UNS S31254 Pipe Elbows, 254 SMO Buttweld Fittings, 6 Moly Pipe Tee, SMO 254 Buttweld Cross, Alloy 254 Buttweld Pipe Fittings, SMO 254 Seamless Fittings Stockist, SMO 254 Pipe Fittings Manufacturer In Mumbai, India.

These SMO 254 Pipe Fittings are used in several industries, including, Marine Environment Offshore, Pharmaceutical industry Chemical industry, and the food business. As these Fittings have excellent formability and weldability, they can be welded using normal austenitic steel procedures. It is more susceptible to hot cracking and should be welded with modest heat input.

These fittings can provide a weld with pitting corrosion resistance. The steel may be produced both cold and hot. Steel is harder to process due to its increased strength and alloy ingredients. Our high standards have proven to be popular, as we pleased our clients nationwide. We always strive to fulfill the deliveries to our clients within a short and estimated period of time.

ANSI B16.9 SS SMO 254 Pipe Cap, ASTM A403 254 SMO Fittings, ASME SA403 254 SMO Stub End, 6Mo Stainless Steel Reducer, 254 SMO Weld Fittings, SMO 1.4547 Buttweld Fittings, SMO 254 Pipe Fittings Supplier in India.

Specification For SMO 254 Pipe Fittings

SMO 254 Pipe Fittings Standard ASTM A403 / ASME SA403
SMO 254 Pipe Fitting Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
SMO 254 Buttweld Fittings Size 3/4" - 12"
SMO 254 Pipe Fittings Type Seamless / Welded / Fabricated
SMO 254 Pipe Fittings Schedule Sch 5 TO Sch XXS.
ASTM A403 SMO 254 Pipe Fittings Thickness Push, Press, Forge, Cast, etc.

Equivalent Grades Of SMO 254 Pipe Fittings

STANDARD UNS WERKSTOFF NR. EN AFNOR SIS
SMO 254 S31254 1.4547 X1CrNiMoCuN20-18-7 Z1 CNDU 20.18.06Az 2378

SMO 254 Pipe Fittings Chemical Composition

Grade C Mn Si S Cu Ni Cr P Mo
SMO 254 0.02 max 1 max 0.8 max 0.01 max 0.5 – 1 17.5 – 18.5 19.5 – 20.5 0.03 1 max

SMO 254 Pipe Fittings Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1320-1390 °C MPa -650 MPa – 300 35 %

Ready Stock Of SMO 254 Pipe Fittings Supplier

  • Alloy 6Moly 180° LR Return Bend
  • 6Mo Stainless Steel LR Elbow
  • 254 SMO 90° Seamless Elbow
  • 254 SMO Buttweld Equal Cross
  • 254 SMO SR Elbow
  • 254 SMO Welded Lateral Tee
  • ASTM A403 254 SMO Stainless Steel Lateral Tee
  • SMO 1.4547 Lap joint Stub Ends
  • ASME B16.9 SMO 254 Pipe Nipple
  • 6 Moly End Pipe Cap
  • Type 254 SMO Seamless Pipe Fittings
  • SMO 1.4547 Short Radius Elbow
  • Stainless Steel SMO 254 Reducing Nipple
  • UNS S31254 Stainless Steel Swage Nipple
  • SMO S31254 Buttweld Fittings
  • SMO 254 Barred Tee
  • SMO 254 Reducing Tee
  • SMO 254 10D Elbow
  • SMO 254 Weldable 1.5D Elbow
  • SMO Gr 254 Industrial Pipe Fittings

SMO 254 Pipe Fittings Dimensional Tolerances

(1) Out-of-round is the sum of absolute values of plus and minus tolerance.
(2) The inside diameter at ends and the nominal wall thicknesses are to be specified by the purchaser.
 IN ACCORDANCE WITH ASME B16.9 – B16.28
All Fittings
90°and 45° Ells and Tees Reducers and Lap Joint Stub Caps 180° Returns Angularity Tol
Nominal Pipe Plane Size (NPS) Outside(1) Diameter at Bevel Inside(1) Diameter at End Wall(2) Thickness Centre-to- End Dimension A,B,C,M Overall Length L Overall Length E Centre-to- Centre Dimension O Back-to- Face Dimension K Alignment at Ends U Nominal Pipe SIze Off Angle Q Off Angle P
1/2 TO 2-1/2 +1/16 ±1/32 Not less than 87-1/2% of Normal Thickness ±1/16 ±1/16 ±1/8 ±1/4 ±1/4 ±1/32 12 to 4 1/32 1/16

-1/32






5 to 8 1/16 1/8
3 TO 3-1/2 ±1/16 ±1/16 ±1/16 ±1/16 ±1/8 ±1/4 ±1/4 ±1/32 10 to 12 3/32 3/16
4 ±1/16 ±1/16 ±1/16 ±1/16 ±1/8 ±1/4 ±1/4 ±1/32 14 to 16 3/32 1/4
5 TO 8 +1/32 ±1/16 ±1/16 ±1/16 ±1/4 ±1/4 ±1/4 ±1/32 18 to 24 1/8 3/8

-1/16









10 TO 18 +1/16 ±1/8 ±3/32 ±3/32 ±1/4 ±3/8 ±1/4 ±1/16  All dimensions are in inches

-1/8






20 TO 24 +1/4 ±3/32 ±3/32 ±3/32 ±1/4 ±3/8 ±1/4 ±1/16

-3/32






SMO 254 Pipe Fittings Applications and Uses

Aerospace Industry

Oil & Gas Industry

Petrochemical Industry

Construction Industry

Mining Industry
