ASTM A182 F22 Flanges

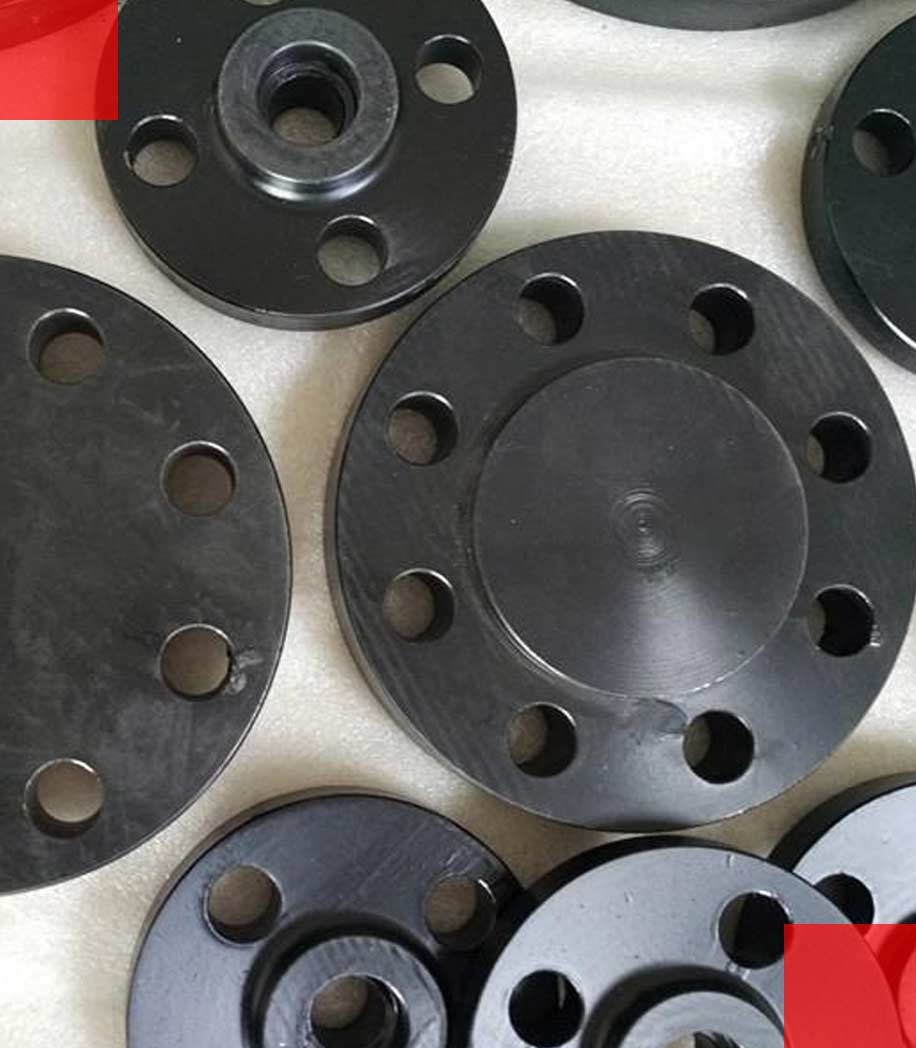

ASTM A182 F22 Flanges Manufacturer & Supplier in India

Katariya Steel is an ASTM A182 F22 Flanges Manufacturer in India, supplying forged Alloy Steel F22 Flanges for power generation, refinery, petrochemical and process piping applications. We offer F22 flanges in sizes from 1/2" to 48" with multiple pressure classes and flange face configurations.

ASTM A182 F22 Flanges are available with Flat Face (FF), Raised Face (RF) and Ring Type Joint (RTJ) configurations. Supply can include dimensional inspection, material testing, PMI, MTC and EN 10204 documentation as specified.

Request a Quote

ASTM A182 F22 Flanges Specifications

Material Standard ASTM A182 / ASME SA182
Grade F22
Material Alloy Steel / Chromium-Molybdenum Steel
UNS K21590
DIN / Werkstoff No. 1.7380
Trade Name 2-1/4Cr-1/2Mo-Vd
Size 1/2" (15 NB) to 48" (1200 NB)
Pressure Classes 150#, 300#, 600#, 900#, 1500#, 2500#
PN Ratings PN6, PN10, PN16, PN25, PN40, PN64 and others
Flange Face Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Manufacturing Forged
Flange Types Slip On, Blind, Reducing, Weld Neck, Socket Weld, Ring Type Joint
Dimensions ANSI/ASME B16.5, ASME B16.47 Series A & B, B16.48, BS 4504, BS 10, EN 1092, DIN and applicable standards
Standards ANSI, ASME, BS, DIN, EN and customer specifications
Inspection Chemical, Mechanical, Dimensional, Visual, Hardness, PMI and applicable NDT
Documentation MTC, EN 10204 3.1 and inspection reports
Packing Wooden cases, export packing, plastic wrapping and steel-strapped bundles

ASTM A182 F22 Flanges Equivalent Grades

GRADE UNS DIN / WERKSTOFF NO. TRADE NAME
Alloy Steel F22 K21590 1.7380 2-1/4Cr-1/2Mo-Vd

ASTM A182 F22, ASME SA182 F22, UNS K21590 and Werkstoff 1.7380 refer to the Alloy Steel F22 material grade used for forged flange applications.

Alloy Steel ASTM A182 F22 Flanges Chemical Composition

GRADE C Mn Si S P Cr Mo
Alloy Steel F22 0.05–0.15 0.30–0.60 0.50 max 0.045 max 0.030 max 0.80–1.25 0.44–0.65

The chemical composition of ASTM A182 F22 Flanges is controlled according to the applicable material specification. Material test certificates can be supplied with the chemical analysis for the ordered heat.

Alloy Steel ASTM A182 F22 Flanges Mechanical Properties

MECHANICAL PROPERTY MINIMUM / RANGE
Tensile Strength 415 MPa min
Yield Strength, 0.2% Offset 205 MPa min
Elongation 20% min

Mechanical testing and material certification can be provided according to the applicable ASTM A182 / ASME SA182 requirements and purchase specification.

ASTM A182 F22 Flanges Dimensions & Standards

ASTM A182 F22 Flanges are manufactured and supplied according to applicable dimensional standards, pressure classes, flange faces and customer drawings.

ASME Dimension & Standard References

ASME STANDARD REFERENCE
ASME B1.20.1 Pipe Threads, General Purpose
ASME B16.1 Cast Iron Pipe Flanges Classes 25, 125 and 250
ASME B16.5 Flanges NPS 1/2 Through NPS 24
ASME B16.11 Forged Fittings, Socket Welding and Threaded
ASME B16.25 Buttwelding Ends
ASME B16.36 Orifice Flanges
ASME B16.47 Large Diameter Steel Flanges NPS 26 Through NPS 60
ASME B31.1 Power Piping
ASME B31.3 Process Piping
ASME B46.1 Surface Texture, Surface Roughness, Waviness and Lay

F22 Flange Dimensions

DIMENSION / PARAMETER AVAILABLE DETAILS
Size Range 1/2" (15 NB) to 48" (1200 NB)
NPS Range NPS 1/2 through NPS 60 depending on applicable standard
Pressure Classes 150#, 300#, 400#, 600#, 900#, 1500#, 2500#
PN Ratings PN6, PN10, PN16, PN25, PN40, PN64 and others
Flange Faces FF, RF, RTJ
Dimensional Standards ASME, ANSI, BS, EN, DIN and applicable specifications
Manufacturing Forged
Flange Types Slip On, Blind, Reducing, Weld Neck, Socket Weld, RTJ
Surface Finish According to applicable flange and customer specification
Custom Dimensions Available according to drawings and project specifications

For large diameter requirements, ASME B16.47 dimensional requirements can be applied for NPS 26 through NPS 60 where specified.

Alloy Steel ASTM A182 F22 Flanges Pressure Ratings

The following pressure-temperature chart is provided as the supplied reference for Alloy Steel ASTM A182 F22 Flanges. Final allowable pressure should be confirmed against the applicable standard, material condition, temperature and piping or equipment design requirements.

TEMPERATURE (°F) 150# 300# 400# 600# 900# 1500# 2500#
-20 to 100 275 720 960 1440 2160 3600 6000
200 230 600 800 1200 1800 3000 5000
300 205 540 720 1080 1620 2700 4500
400 190 495 660 995 1490 2485 4140
500 170 465 620 930 1395 2330 3880
600 140 435 580 875 1310 2185 3640
650 125 430 575 860 1290 2150 3580
700 110 425 565 850 1275 2125 3540
750 95 415 555 830 1245 2075 3460
800 80 405 540 805 1210 2015 3360
850 65 395 530 790 1190 1980 3300
900 50 390 520 780 1165 1945 3240
950 35 380 510 765 1145 1910 3180
1000 20 320 430 640 965 1605 2675
1050 20 310 410 615 925 1545 2570
1100 20 255 345 515 770 1285 2145
1150 20 200 265 400 595 995 1655
1200 20 155 205 310 465 770 1285
1250 20 115 150 225 340 565 945
1300 20 85 115 170 255 430 715
1350 20 60 80 125 185 310 515
1400 20 50 65 95 145 240 400
1450 15 35 45 70 105 170 285
1500 10 25 35 55 80 135 230

ASTM A182 F22 Flanges Features

ASTM A182 F22 Flanges are supplied in forged Alloy Steel construction with multiple flange configurations, pressure classes and dimensional standards.

  • ASTM A182 / ASME SA182 F22 material
  • UNS K21590
  • Werkstoff No. 1.7380
  • Forged flange construction
  • 1/2" to 48" size range
  • 150# to 2500# pressure classes
  • PN6 to PN64 ratings and other requirements
  • Flat Face, Raised Face and RTJ configurations
  • Slip On, Blind, Reducing, Weld Neck and Socket Weld types
  • ASME, ANSI, BS, DIN and EN dimensional standards
  • Custom dimensions and drawings
  • Chemical and mechanical test reports
  • PMI and dimensional inspection where specified
  • MTC and EN 10204 3.1 documentation
  • Export-standard packing

ASTM A182 F22 Flanges Applications

ASTM A182 F22 Flanges are used across:

  • Power Generation Plants
  • Thermal Power Plants
  • Refineries
  • Petrochemical Plants
  • Chemical Processing Plants
  • Oil & Gas Projects
  • Process Piping Systems
  • Steam Piping Systems
  • Boiler Systems
  • Heat Exchangers
  • Pressure Vessels
  • Power Transmission Systems
  • Engineering and EPC Projects

Quality Inspection & Testing of ASTM A182 F22 Flanges

Katariya Steel can provide inspection and documentation according to the purchase order and applicable material specification.

  • Chemical Composition Testing
  • Tensile Strength Testing
  • Yield Strength Testing
  • Elongation Testing
  • Hardness Testing
  • Dimensional Inspection
  • Visual Inspection
  • PMI Testing
  • Non-Destructive Testing where specified
  • Surface Finish Inspection
  • Flange Face and Bore Inspection
  • Marking Verification
  • Material Traceability
  • Mill Test Certificate
  • EN 10204 3.1 Documentation
  • Third-Party Inspection where required

ASTM A182 F22 Flanges Manufacturer, Supplier & Stockist in India

Katariya Steel supplies ASTM A182 F22 Flanges to customers across India in standard and project-specific configurations. Availability can be provided for different sizes, pressure classes, flange faces and dimensional standards.

Alloy Steel F22 Flange Manufacturer & Supplier in India

As an Alloy Steel F22 Flange Manufacturer and Supplier in India, Katariya Steel offers forged F22 flanges for industrial piping and equipment requirements. Products can be supplied with required inspection documentation, material certificates, markings and packing.

Major Indian locations served include:

  • Mumbai
  • Thane
  • Pune
  • Ahmedabad
  • Surat
  • Vadodara
  • Rajkot
  • Nashik
  • Nagpur
  • Indore
  • Bhopal
  • Chennai
  • Hyderabad
  • Secunderabad
  • Bengaluru
  • Kolkata
  • Jamshedpur
  • Ranchi
  • New Delhi
  • Noida
  • Faridabad
  • Gurgaon
  • Jaipur
  • Ludhiana
  • Chandigarh
  • Kanpur
  • Navi Mumbai
  • Pimpri-Chinchwad
  • Visakhapatnam
  • Ernakulam
  • Thiruvananthapuram
Request a Quote for Alloy Steel F22 Flanges

Alloy Steel F22 Flange Stockist & Exporter in India

As an Alloy Steel F22 Flange Stockist and Exporter in India, Katariya Steel can supply standard and project-specific flange requirements for domestic and international orders.

Export markets include:

  • Japan Japan
  • Russia Russia
  • United States United States
  • Saudi Arabia Saudi Arabia
  • Kuwait Kuwait
  • Singapore Singapore
  • Malaysia Malaysia
  • Germany Germany
  • Italy Italy
  • China China
  • United Kingdom United Kingdom
  • Canada Canada
  • Iran Iran
  • Thailand Thailand
  • South Korea South Korea
  • Turkey Turkey
  • Egypt Egypt
  • Vietnam Vietnam
  • Oman Oman
  • Australia Australia
  • Qatar Qatar
  • Mexico Mexico
  • Brazil Brazil
  • France France
  • South Africa South Africa
  • Spain Spain
  • Netherlands Netherlands
  • Indonesia Indonesia
  • Nigeria Nigeria
  • Bangladesh Bangladesh

ASTM A182 F22 Flanges Exporter from India

Katariya Steel supplies ASTM A182 F22 Flanges for export orders with product marking, inspection documentation and packing according to customer and project requirements.

Export orders can be prepared with:

  • Export-grade packing
  • Wooden cases
  • Plastic wrapping
  • Steel-strapped bundles
  • Product identification
  • Heat number marking
  • Material Test Certificates
  • EN 10204 3.1 documentation
  • Inspection reports
  • Third-party inspection where specified

ASTM A182 F22 Flanges Price

The price of ASTM A182 F22 Flanges depends on the product configuration and order requirements.

Key pricing factors include:

  • Flange type
  • NPS / nominal size
  • Pressure class
  • Flange face
  • Quantity
  • Dimensional standard
  • Machining requirements
  • Testing and inspection
  • Certification requirements
  • Marking requirements
  • Packing
  • Delivery location

For an accurate ASTM A182 F22 Flanges price, provide the required size, flange type, pressure class, face configuration and quantity.

Get a Quote for ASTM A182 F22 Flanges

Send your F22 Flange requirements to Katariya Steel for a product and commercial quotation.

Please provide:

  • Flange Type
  • NPS / Size
  • Pressure Class
  • Flange Face
  • Quantity
  • Applicable Standard
  • Required Inspection / Certification
  • Drawing or Special Dimensions, if applicable
  • Delivery Location
  • Required Delivery Schedule

Katariya Steel can supply ASTM A182 F22 Flanges according to applicable specifications, dimensional standards and project requirements.
